How I build secure (and VPN-less!) industrial IoT connectivity

As a customer engineer, I get to discuss and help improve networks in places I’d never otherwise go, like smart factories. The problem is, once these folks show me what their networks look like, all I see is a mess of complex firewall access, dated VPN troubleshooting, and exposed private networks.

After getting to help a few of these companies out, saving them countless headaches as they look to gain access to remote services, I thought I’d share the story of how they're now using ngrok.

Here’s the scenario: A network of smart factories is coming online, filled with factories that contain IoT-connected machines, telemetry sensors, and a real-time monitoring dashboard. The goal? Secure, controlled remote access to critical factory systems without exposing them to the public internet or relying on complex VPN setups.

Three key services need secure access in each factory:

1. A telemetry API, which streams real-time machine data (always accessible).
2. A sensor database for storing telemetry logs (always accessible).
3. A factory web dashboard used by technicians for maintenance (only accessible on demand).

And the challenges are varied and complicated on their own:

1. Factory networks block inbound connections (no public IPs).
2. Technicians need temporary access to the dashboard without leaving it exposed.
3. API and database must remain permanently accessible from the company’s cloud.
4. Access to the dashboard must be authenticated via Azure AD.
5. The solution must scale to support multiple factories without requiring complex VPNs or multiple agents per site.

ngrok is a universal gateway, which means it allows you to create secure ingress to any app, IoT device, or service without spending hours learning arcane networking technologies. When you deploy a single ngrok agent per factory, you can control access to all your systems without exposing any machines to the public internet. That's a big win for security and reliability.

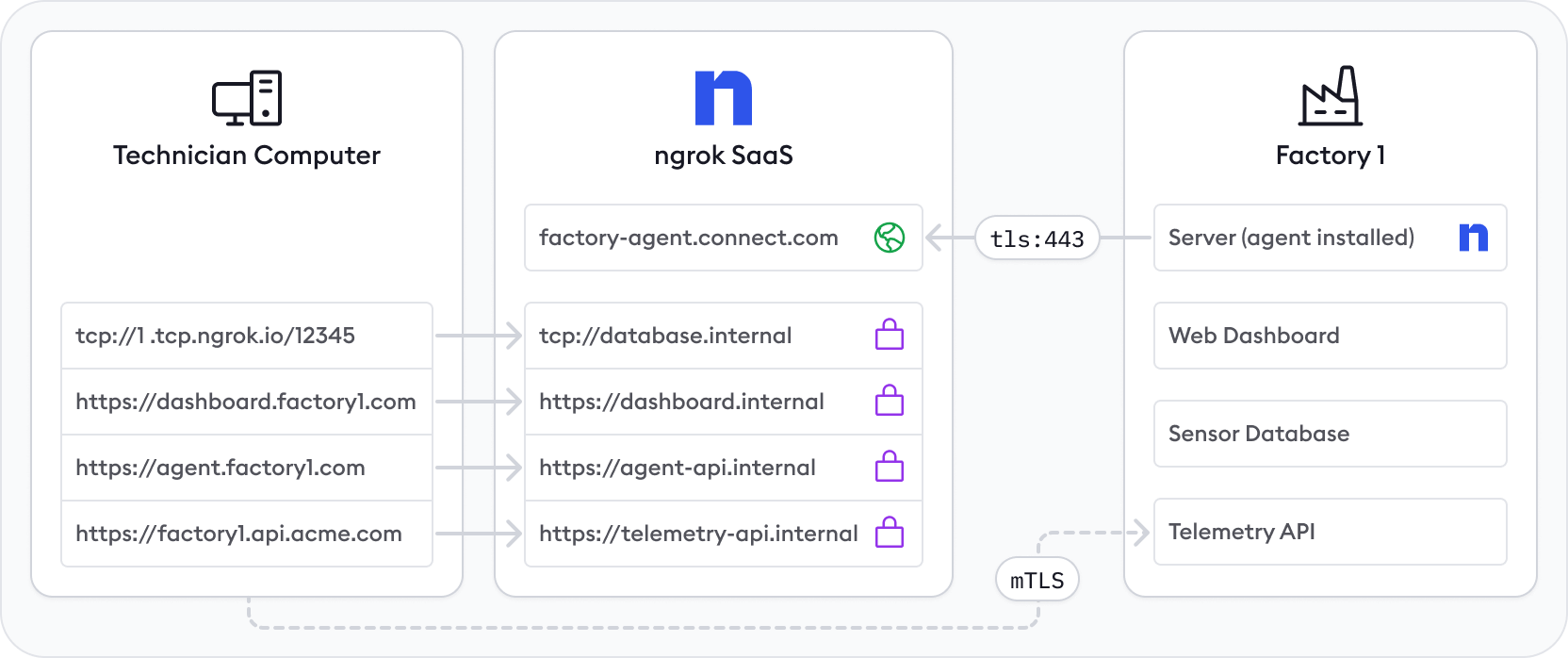

Let's look at an architecture diagram:

Why only one ngrok agent per factory?Copy link to clipboard

Traditionally, you might assume that every device inside the factory needs its own ngrok agent, but I've found this isn't necessary. A single ngrok agent is installed on a network-accessible machine inside the factory, and it:

1. Acts as a central gateway (jumpbox) that can reach any machine on the local network, eliminating the need for multiple agents.
2. Creates Internal Endpoints so that each API, database, and dashboard is securely exposed inside ngrok, never publicly visible.
3. Uses Cloud Endpoints for controlled access, where external cloud apps can access only what they need, and the dashboard is only started when requested.
4. Runs as a background service configured to automatically start on boot, restart after crashes, and log events.
5. Dynamically manages tunnels, as The agent API can start and stop tunnels as needed.

This setup minimizes security risks, simplifies deployment, and ensures continuous uptime for mission-critical services.

Understanding cloud and internal endpointsCopy link to clipboard

Before I show you how to build up this architecture for yourself, let me tell you about the components that make it possible.

An internal endpoint enables a service inside the factory network to be reachable within ngrok, without being publicly exposed. They can:

• Only receive traffic from cloud endpoints or internal services that explicitly route traffic to them.
• Not be accessed directly from the internet.
• Be used for telemetry APIs, databases, and dashboards.

Here’s an example: The factory’s telemetry API runs on a local server (192.168.1.100:8080). Instead of exposing it publicly, you can create an internal endpoint:

version: 3

agent:
  authtoken: YOUR_NGROK_AUTHTOKEN

endpoints:
  - name: example
    url: https://api.internal
    upstream:
      url: http://192.168.1.100:8080

Now this API is only accessible inside ngrok’s private network.

A cloud endpoint is a permanent, externally accessible entry point into the factory network that’s also:

• Managed centrally via the ngrok API or dashboard.
• Always on, not tied to the lifecycle of the agent.
• Does not forward traffic to the agent by default—it must be configured to route traffic to internal endpoints.
• Used for exposing services to external cloud apps securely.

For example, the factory’s telemetry API is accessible via https://factory.example.com/api, but instead of exposing the API directly, a cloud endpoint forwards traffic to its internal endpoint:

on_http_request:
  - expressions:
      - req.url.path.startsWith("/api")
    actions:
      - type: forward-internal
        config:
          url: https://api.internal

Still curious about *why` this "shape" of cloud and internal endpoints is perfect for getting APIs online securely and easily? We have an explainer for that.

Define internal endpoints in ngrok.yamlCopy link to clipboard

After installing the ngrok agent, define all required internal endpoints inside the ngrok configuration file, which is at /etc/ngrok.yml on Linux or C:\ngrok\ngrok.yml on Windows.

version: 3

agent:
  authtoken: YOUR_NGROK_AUTHTOKEN

endpoints:
  - name: telemetry-api
    url: https://telemetry-api.internal
    upstream:
      url: http://192.168.1.100:8080 # API inside factory network
  - name: sensor-db
    url: tcp://database.internal:5432
    upstream:
      url: tcp://192.168.1.101:5432 # PostgreSQL database
  - name: factory-dashboard
    url: https://dashboard.internal
    upstream:
      url: http://192.168.1.102:3001 # Web dashboard
  - name: agent-api
    url: https://agent-api.internal
    upstream:
      url: http://localhost:4040 # Expose Agent API internally

Install ngrok as a background serviceCopy link to clipboard

Now, install and start the service.

ngrok service install --config /etc/ngrok.yml
ngrok service start

This will start all tunnels defined in the configuration file, ensure ngrok runs persistently in the background, and integrate with native OS service tooling.

Reserve a TCP address for your TCP-based cloud endpointCopy link to clipboard

When you reserve a TCP Address, you can create a TCP cloud endpoint that binds to that domain. Reserved TCP addresses are available on ngrok’s pay-as-you-go plan.

curl -X POST \
  -H "Authorization: Bearer <NGROK_API_KEY>" \
  -H "Content-Type: application/json" \
  -H "Ngrok-Version: 2" \
  -d '{"description":"SQLdb Address", "region":"us"}'\
  https://api.ngrok.com/reserved_addrs

Reserve a custom wildcard domainCopy link to clipboard

Creating a custom wildcard domain will allow you to create endpoints and receive traffic on any subdomain of your domain. Wildcard domains are available on ngrok pay-as-you-go-plans when you verify with support. It can be helpful to create a separate subdomain for each factory you wish to connect to.

curl \
  -X POST \
  -H "Authorization: Bearer <NGROK_API_KEY>" \
  -H "Content-Type: application/json" \
  -H "Ngrok-Version: 2" \
  -d '{"domain":"`.api.acme.com","region":"us"}' \
  https://api.ngrok.com/reserved_domains

Create a bot user and authtoken for the factoryCopy link to clipboard

Create a bot user so that you can create an agent authtoken independent of any user account. A bot user represents a service account, and allows each customer network to have its own authtoken. In the case one authtoken is compromised, only that customer network may be affected rather than all of them.

curl \
  -X POST \
  -H "Authorization: Bearer <NGROK_API_KEY>" \
  -H "Content-Type: application/json" \
  -H "Ngrok-Version: 2" \
  -d '{"name":"bot user for factory 1"}' \
  https://api.ngrok.com/bot_users

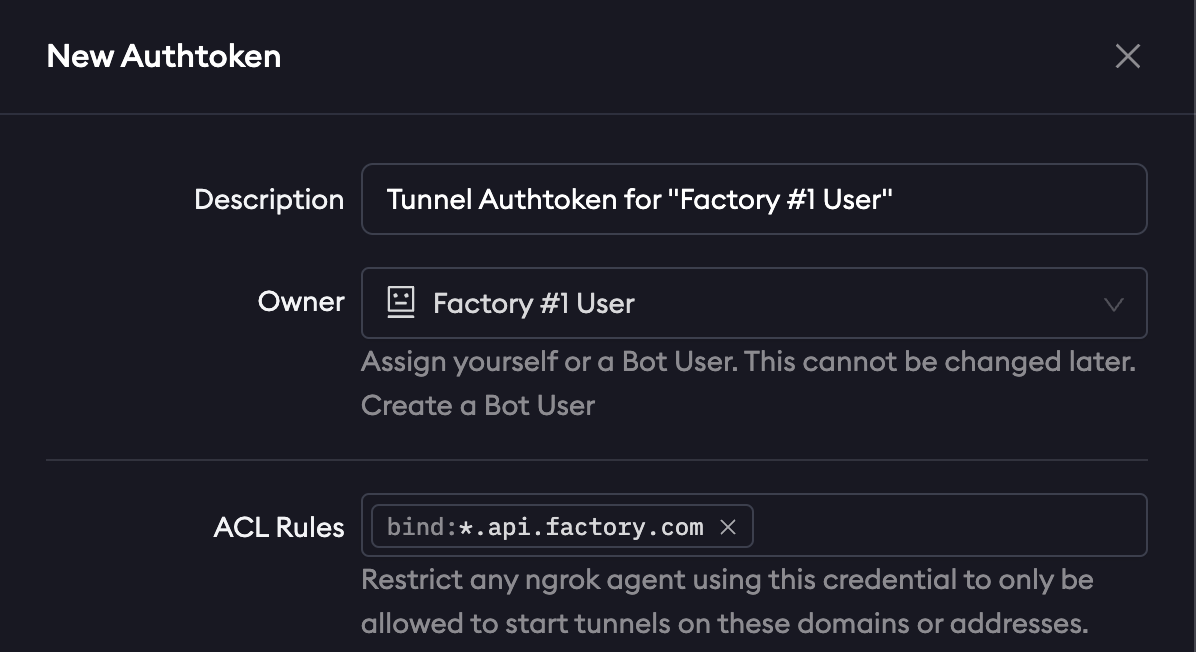

Navigate to the Authtokens section of your ngrok dashboard and create an authtoken for that bot user and assign it an ACL binding, so that it can only create endpoints bound to the reserved wildcard domain for that factory’s telemetry API.

Create cloud endpoints for always-on API and database accessCopy link to clipboard

Since the telemetry API and database must be always accessible, create permanent cloud endpoints that route traffic to their internal endpoints.

Create an HTTPs cloud endpoint for the API using the ngrok platform API.

curl -X POST \
  -H "Authorization: Bearer <NGROK_API_KEY>" \
  -H "Content-Type: application/json" \
  -H "Ngrok-Version: 2" \
  -d '{
    "type": "cloud",
    "url": "https://factory1.api.acme.com",
    "traffic_policy": {
      "on_http_request": [
        {
          "expressions": [{ "req.url.path.startsWith": "/api" }],
          "actions": [{ "type": "forward-internal", "config": { "url": "https://api.internal" } }]
        }
      ]
    }
  }' \
  https://api.ngrok.com/endpoints

Now factory1.api.acme.com/api permanently forwards traffic to api.internal inside the factory.

Next, you need to create a TCP cloud endpoint for the sensor database because it's on a TCP-based internal endpoint.

curl -X POST \
  -H "Authorization: Bearer <NGROK_API_KEY>" \
  -H "Content-Type: application/json" \
  -H "Ngrok-Version: 2" \
  -d '{ "url": "reserved TCP address",
          "type": "cloud",
          "bindings": ["public"],
          "traffic_policy": "on_tcp_connect:\n  - actions:\n      - type: forward-internal\n
           config:\n          url: \"tcp://database.internal\"\n      - type: restrict-ips\n
           config:\n          enforce: true\n          allow:\n            - 203.0.113.0/24\n
           deny:\n            - 192.0.2.0/24" }' \
  https://api.ngrok.com/endpoints

Now, your reserved TCP address forwards TCP connections to the factory database and only allows access from 203.0.113.0/24 and denies traffic from 192.0.2.0/24.

Enable on-demand web dashboard accessCopy link to clipboard

Since the web dashboard should only be online when needed, use ngrok’s agent API to dynamically start and stop tunnels.

As a technician, you can start the tunnel by running:

curl -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "dashboard",
    "proto": "http",
    "addr": "3001",
    "domain": "app.factory.com"
  }'  \
  https://agent.example.com/api/tunnel

Now, app.factory.com is live—only for this session.

Secure API access with Google OAuth and mTLS with Traffic PolicyCopy link to clipboard

Navigate to your newly created telemetry API cloud endpoint in the endpoints section tab on the dashboard, and apply a Traffic Policy. Make sure you have a certificate on hand or generate them using the instructions in our terminate-tls docs.

on_tcp_connect:
  - actions:
      - type: terminate-tls
          config:
            mutual_tls_certificate_authorities:
              - |-
                 -----BEGIN CERTIFICATE-----
                 ... certificate ...
                 -----END CERTIFICATE-----
on_http_request:
  - actions:
      - type: oauth
        config:
          provider: google
      - type: forward-internal
           config:
             url: https://telemetry.api.internal:443

Now, only Azure-AD authenticated users can access the web dashboard and the connection is secured with mTLS.

Welcome to your secure, connected, and automated factoryCopy link to clipboard

You officially made it! You have now integrated a system that allows you to seamlessly and securely access any and all remote services within your enterprise. Let’s recap what what you've built:

1. One ngrok agent per factory and no need for multiple installs.
2. Always-online API and dashboard, securely available via cloud endpoints.
3. A web dashboard that spins up on-demand with authentication via Azure AD and mTLS security.
4. An Agent API that dynamically manages tunnels with automatic provisioning and deprovisioning.
5. ngrok runs as a background service, which means it's reliable and will always auto-restart.
